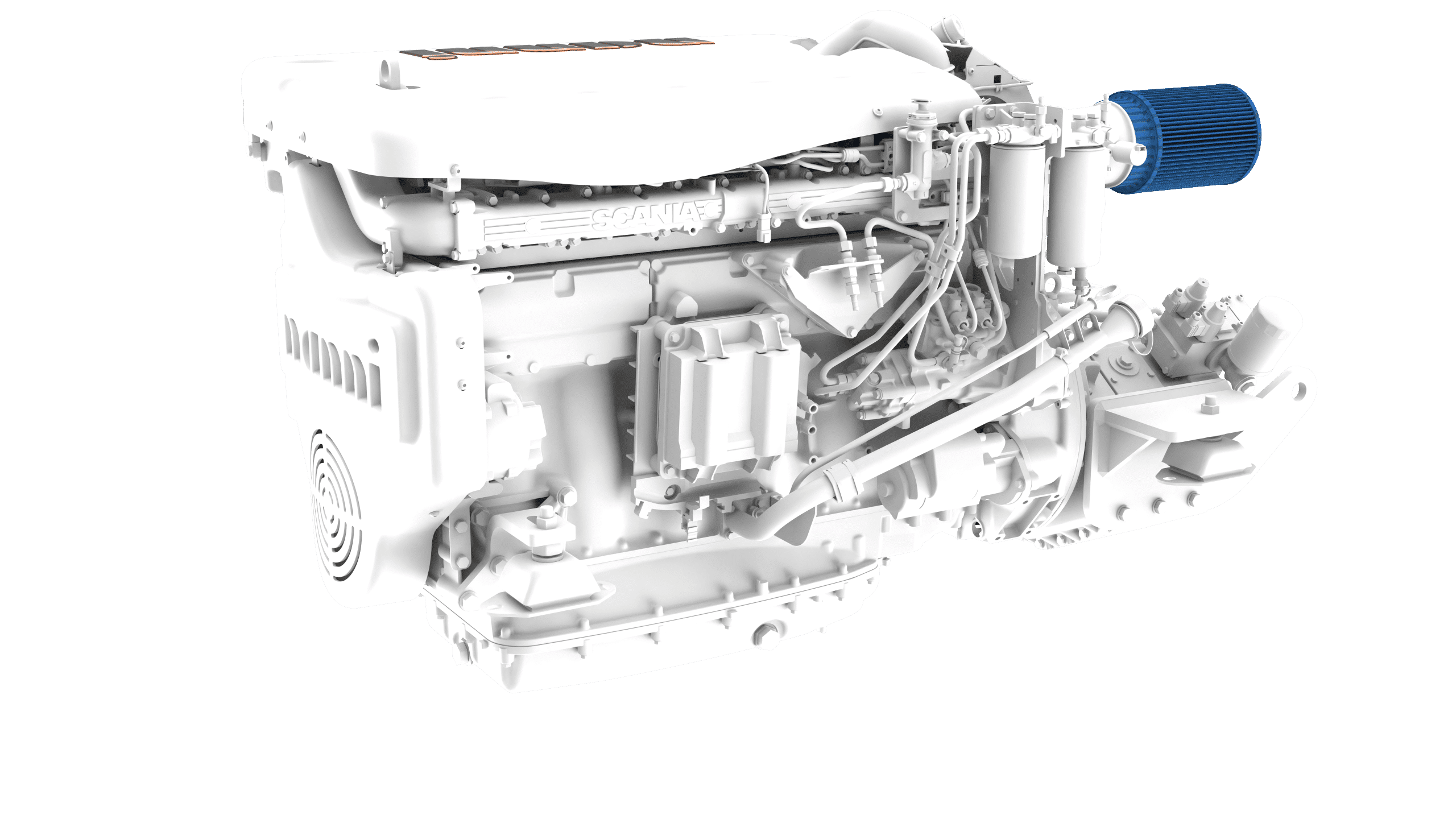

Engine range N13 CR3
N13.700 CR3 HD
700 HP
-
515 kW
-
12.7 litres
- HVO Compliant
- Scania Engine Base
- High Torque at Low RPM
Specifications
Configuration
6 cylinders in line
4 stroke Diesel
4 stroke Diesel
Fuel system
Extra High Pressure Injection (XPI)
Displacement
12.7 l [775 in³]
Bore & Stroke
130 x 160 mm [5.1 x 6.3 in]
Air intake
Turbocharged with after cooler
Cooling
Closed cooling with heat exchanger and charge air cooler
Transmission
Shaft Line, Water Jet, Surface Drive
Emission
US tier 3, IMO Tier II
Dimensions
Max length
1389 mm [54.7 in]
Length clutch
1073 mm [42.2 in]
Width
1115 mm [43,9 in]
Height
1285 mm [2833 in]
Weight
1285 kg [2833 lbs]
Features and benefits
- Scania engine base
- High power density
- Robust design
- High torque at low RPM
- Optimized fuel consumption at maximum torque
- Replaceable wet-type cylinder liners
- Installation flexiblity
- Best in class on power to weight Ratio
