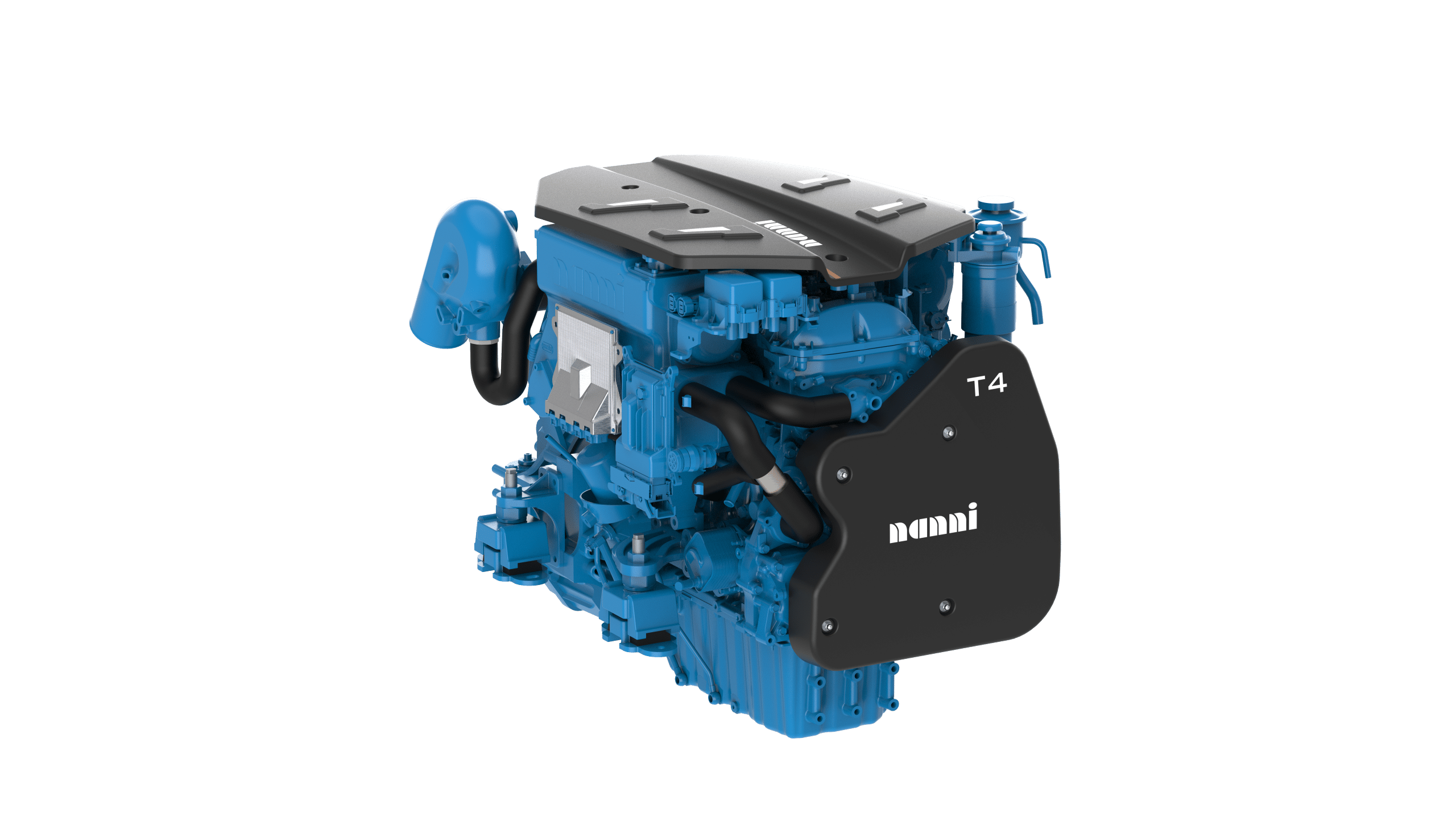

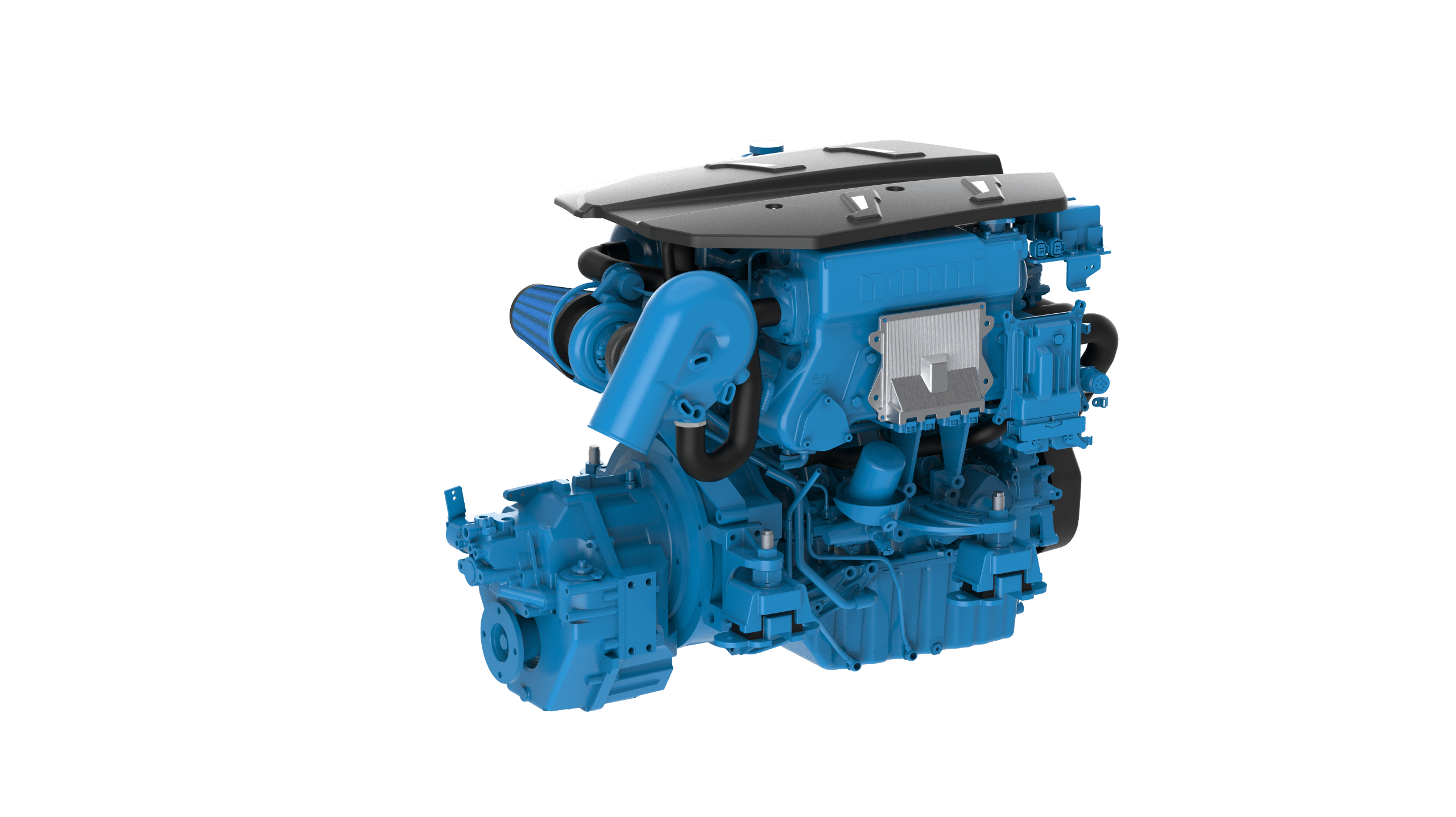

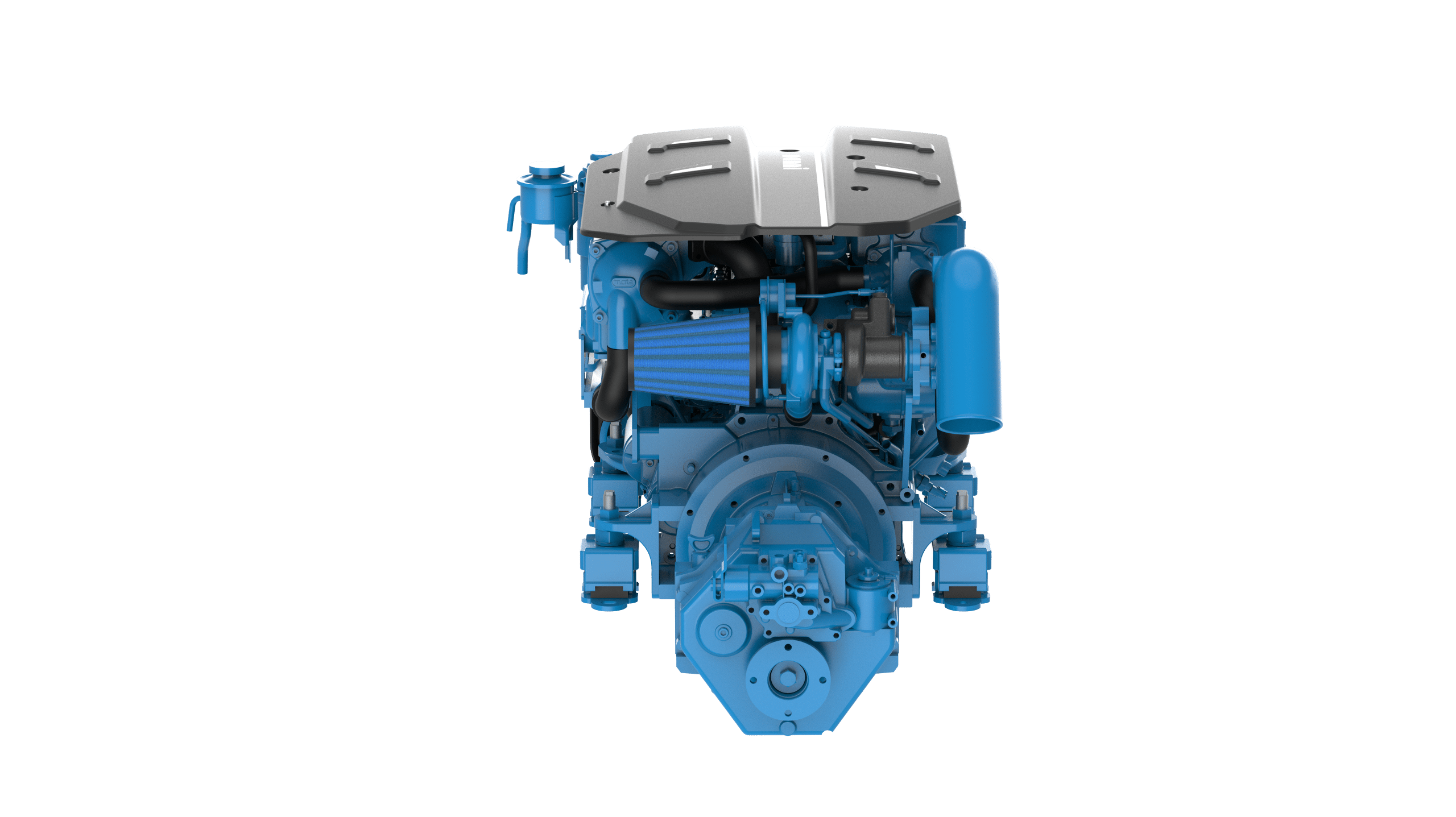

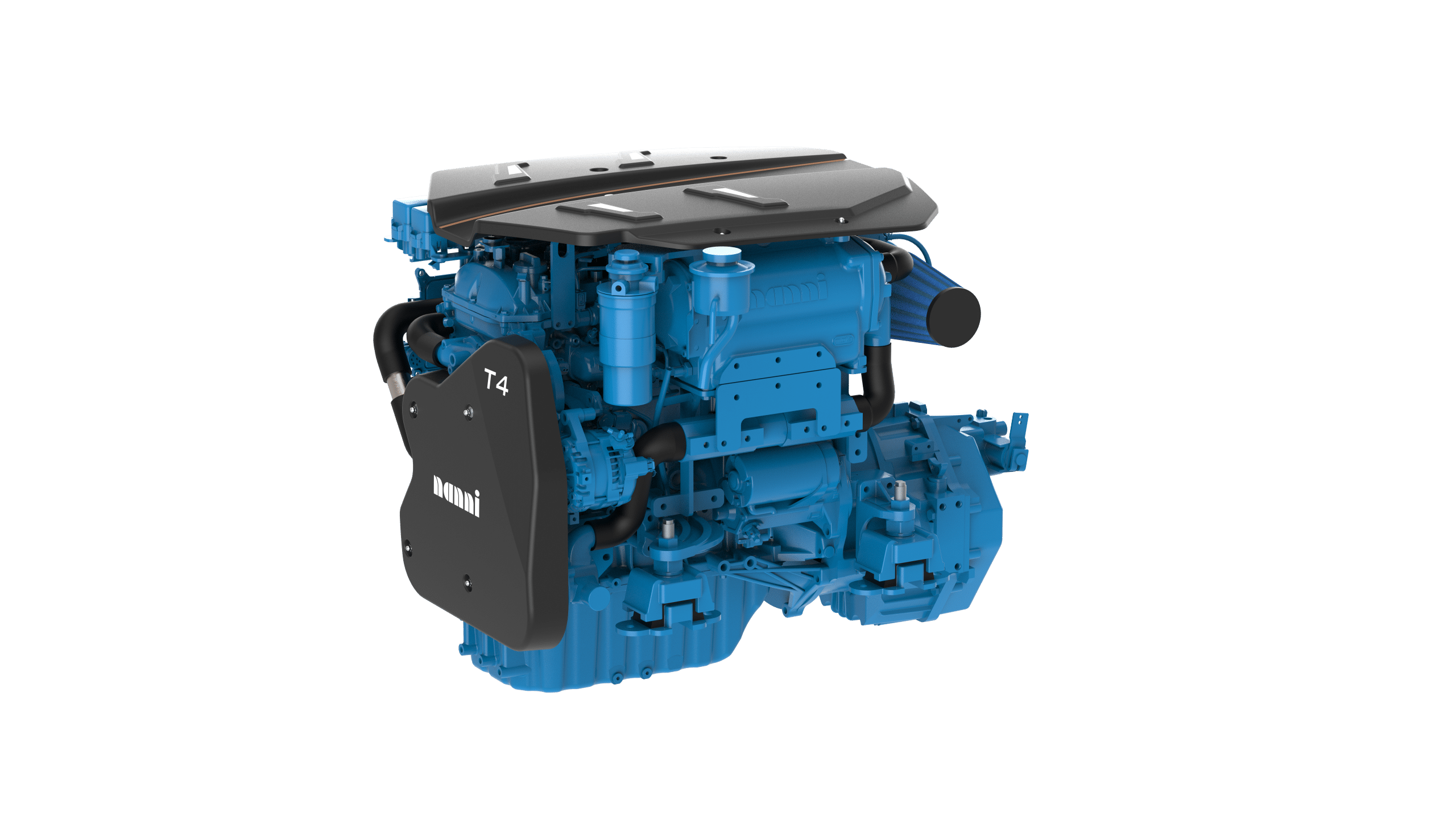

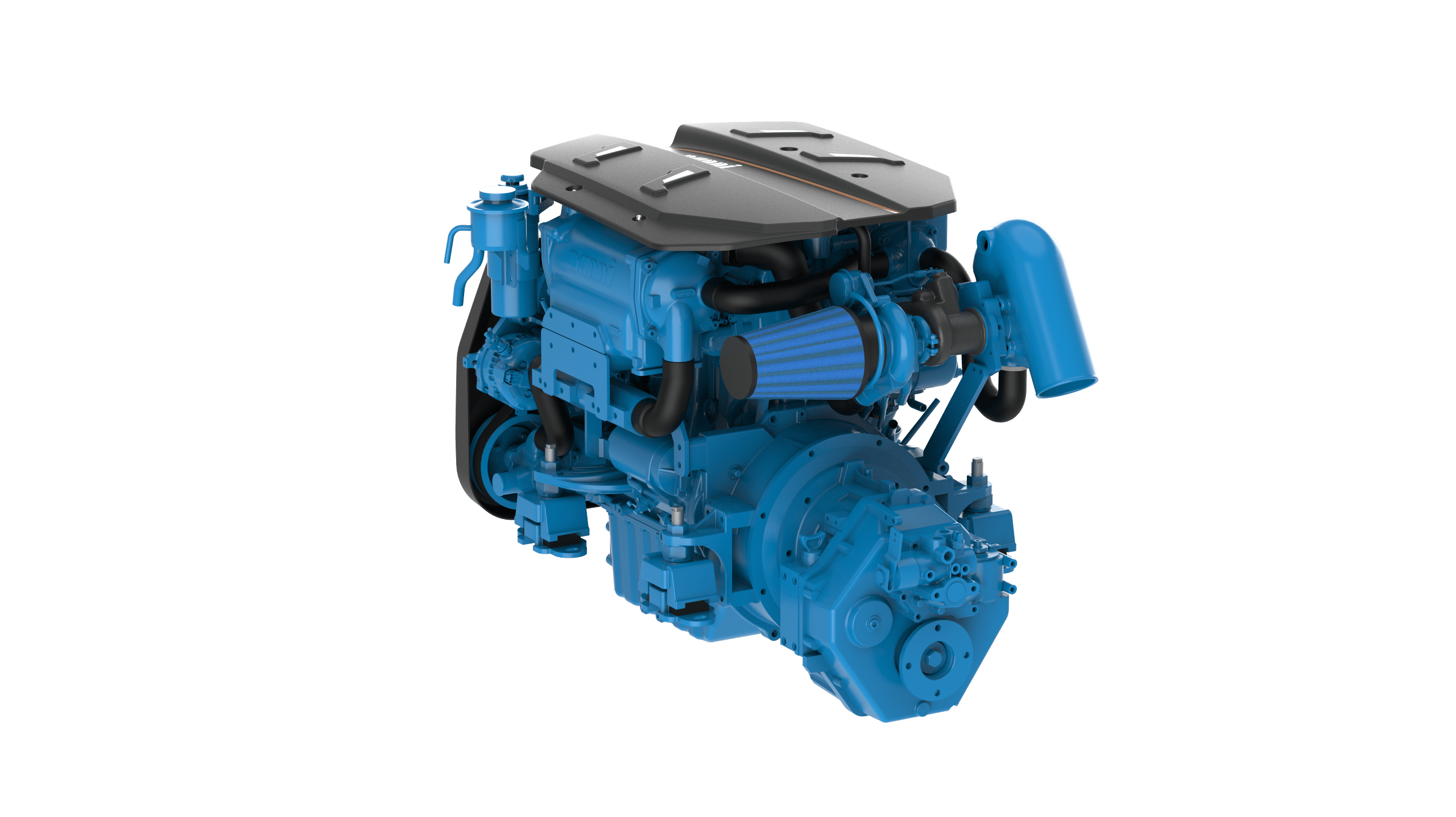

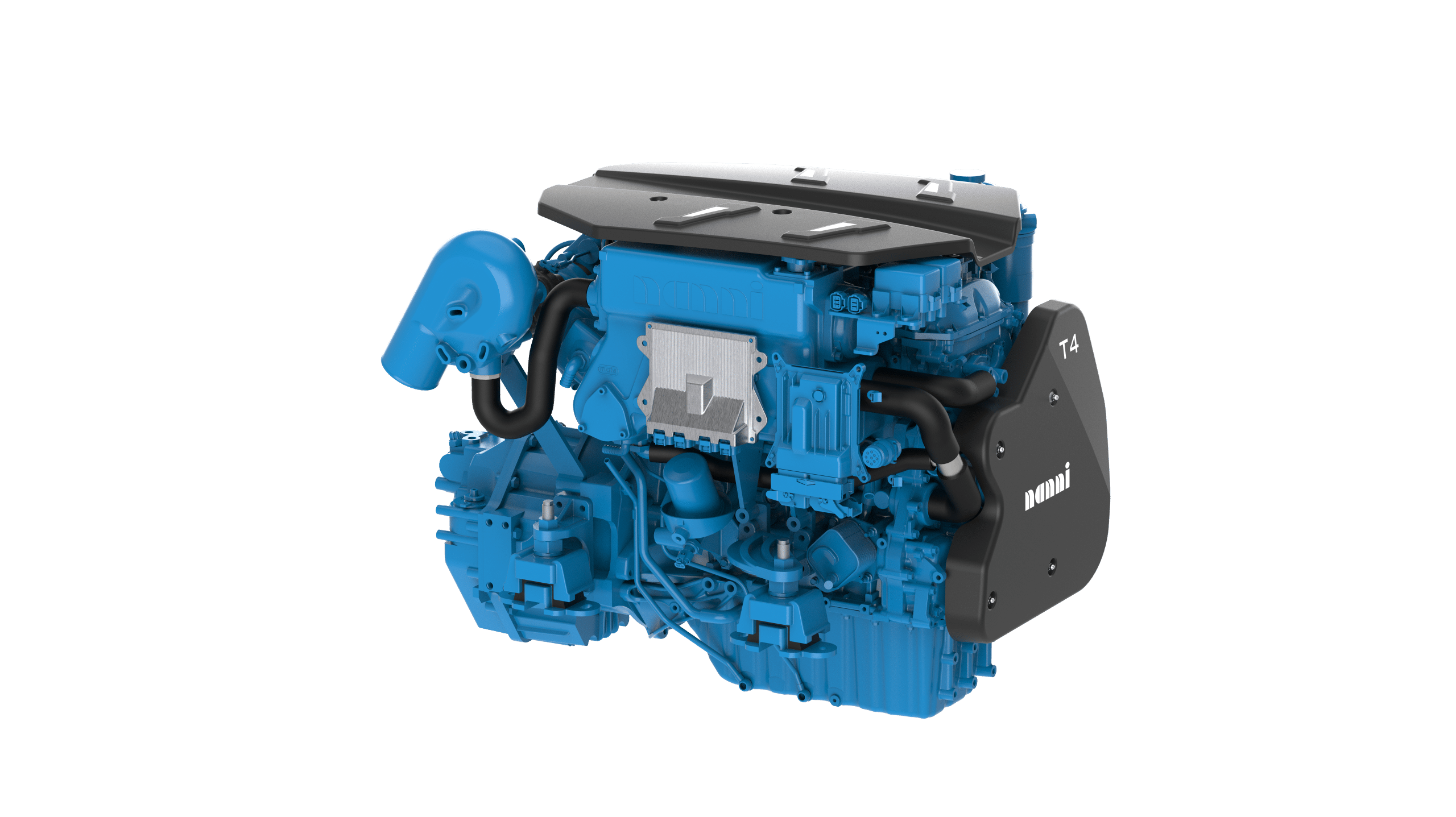

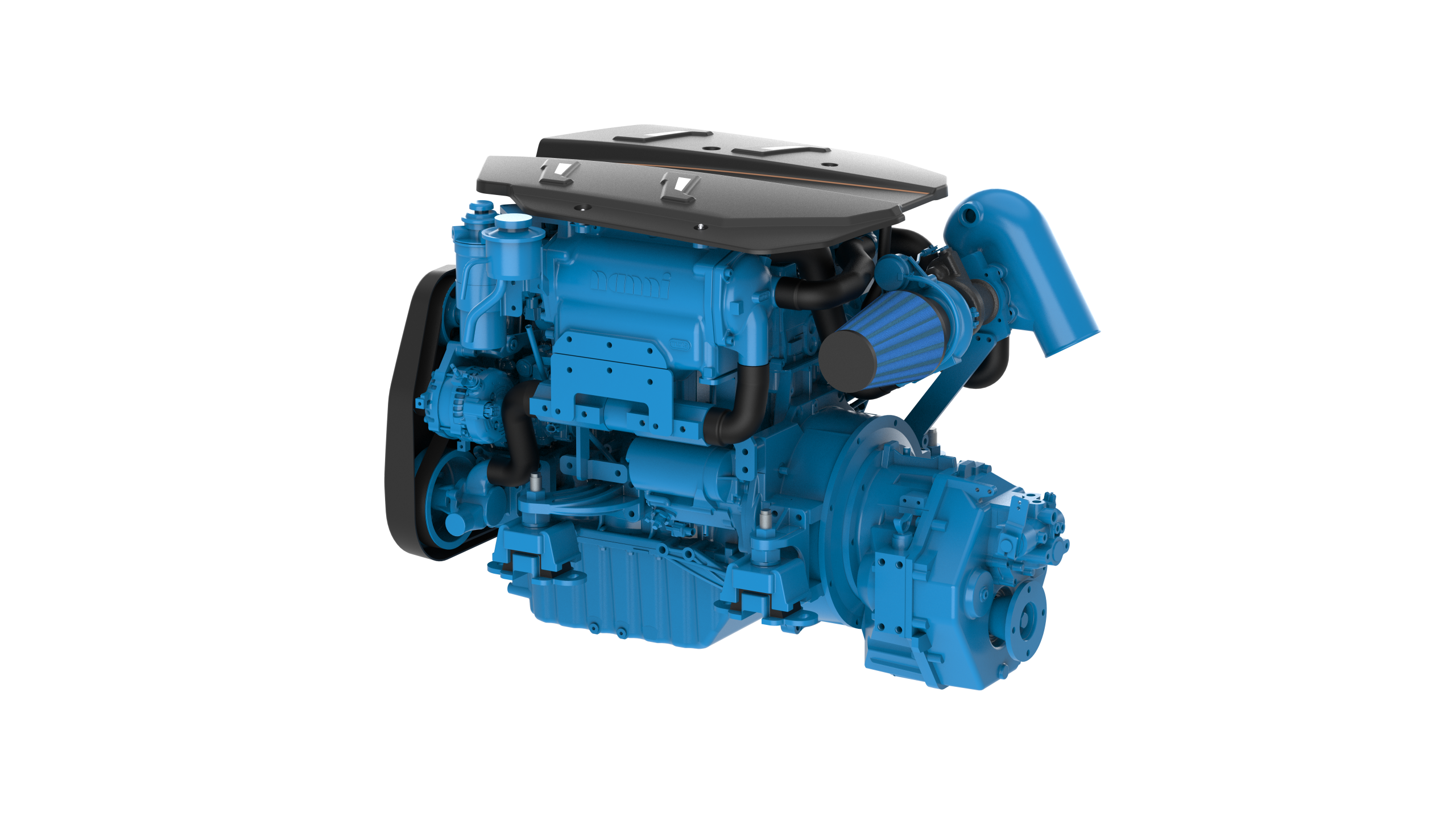

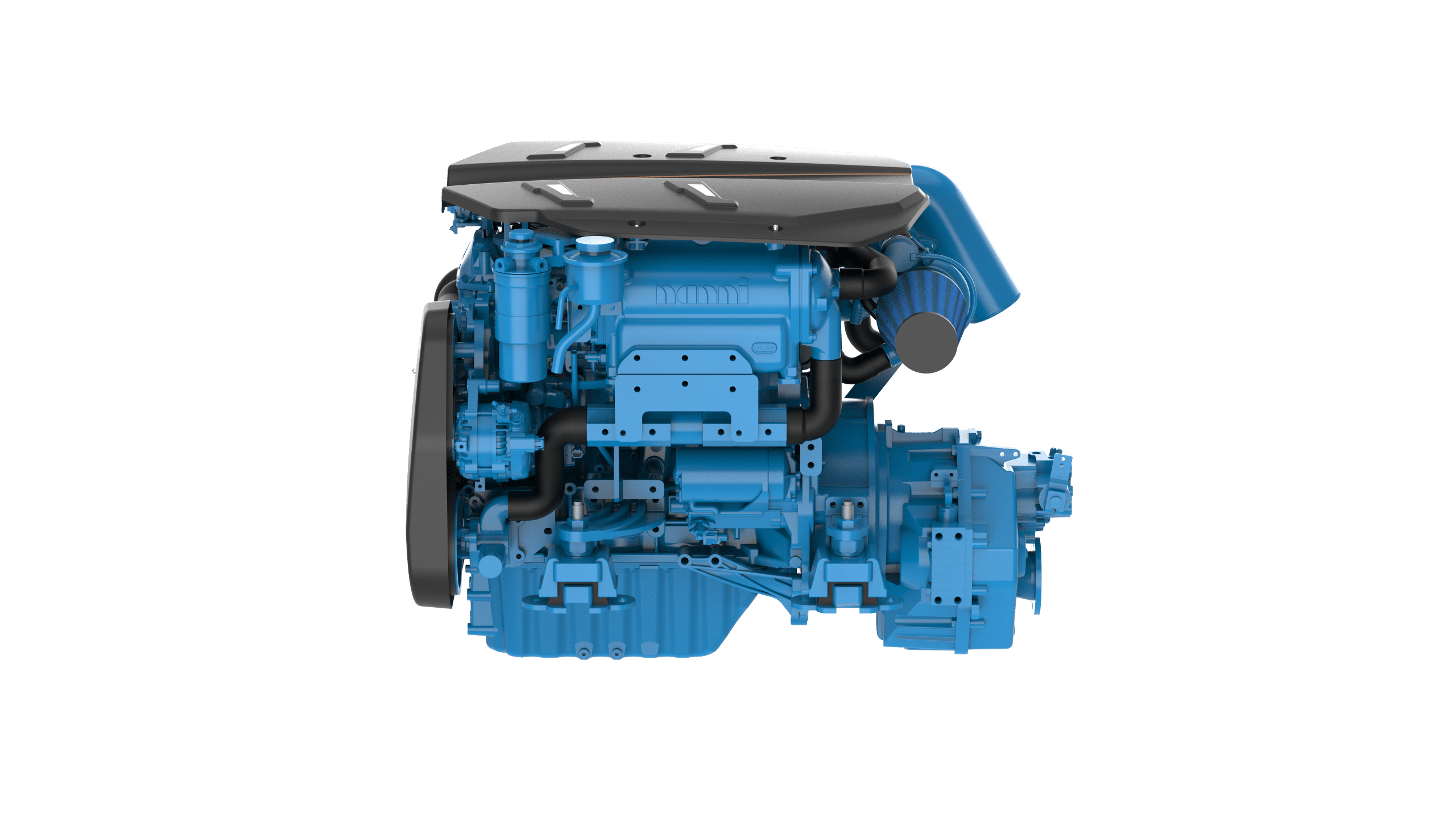

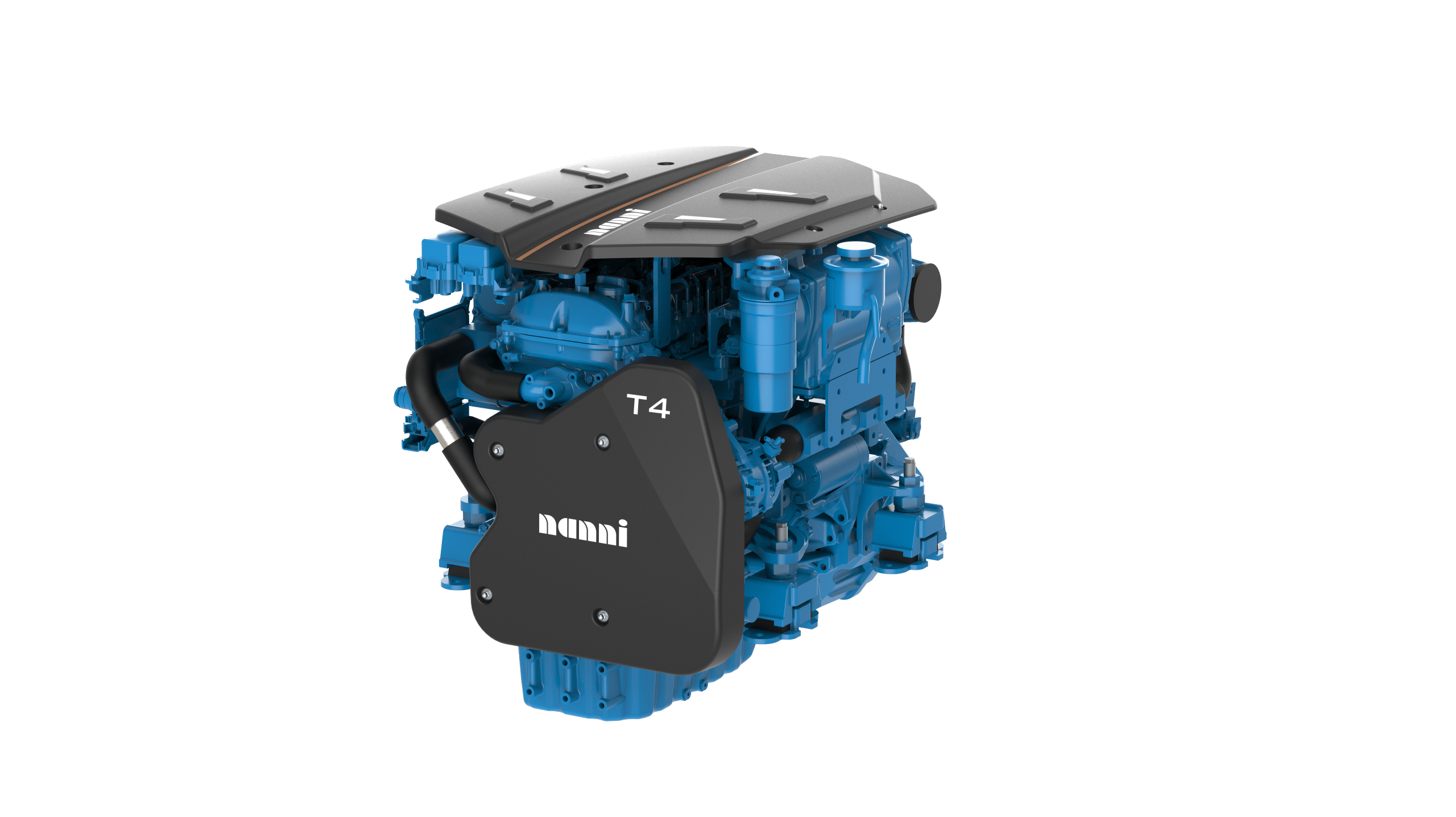

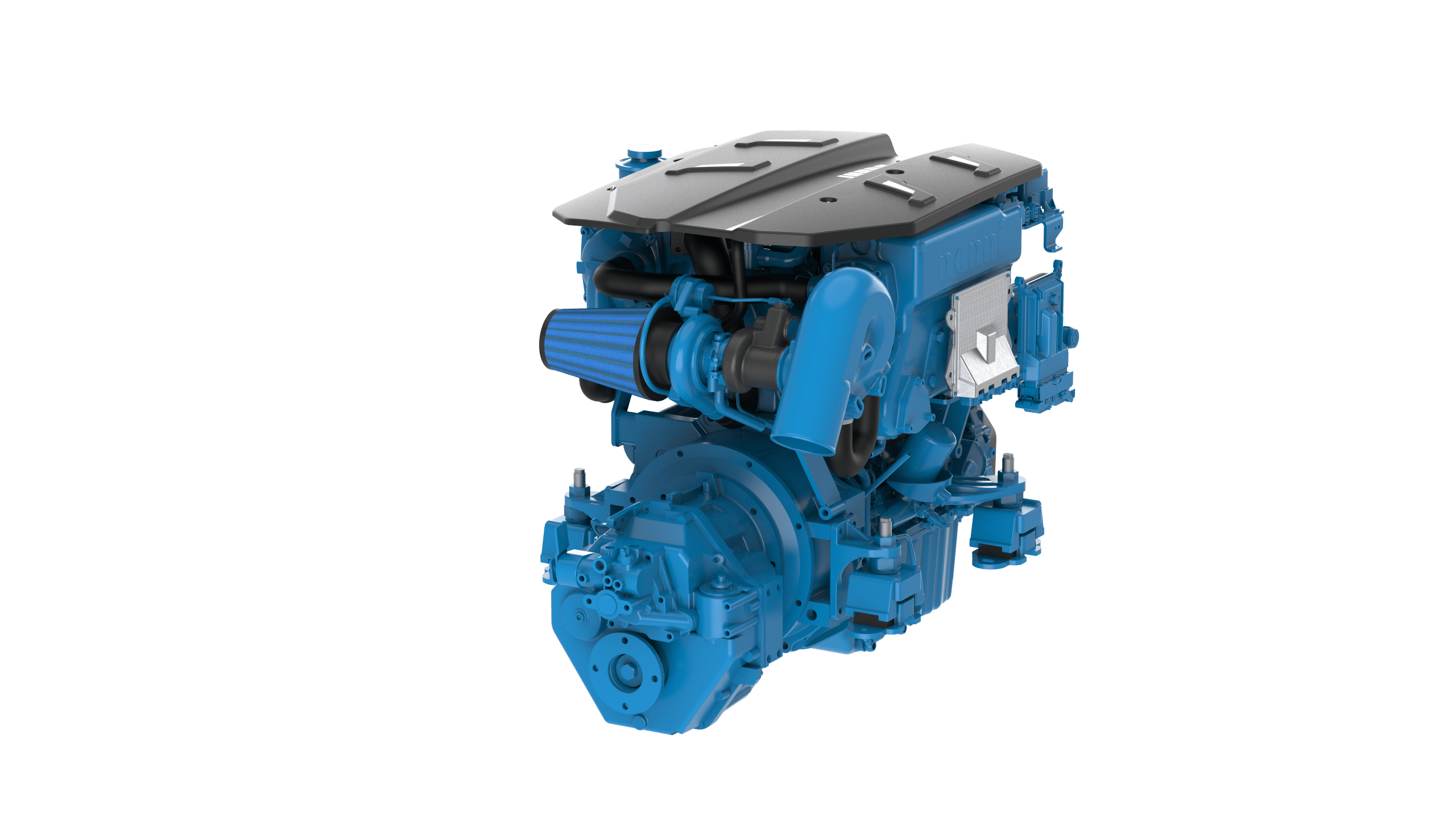

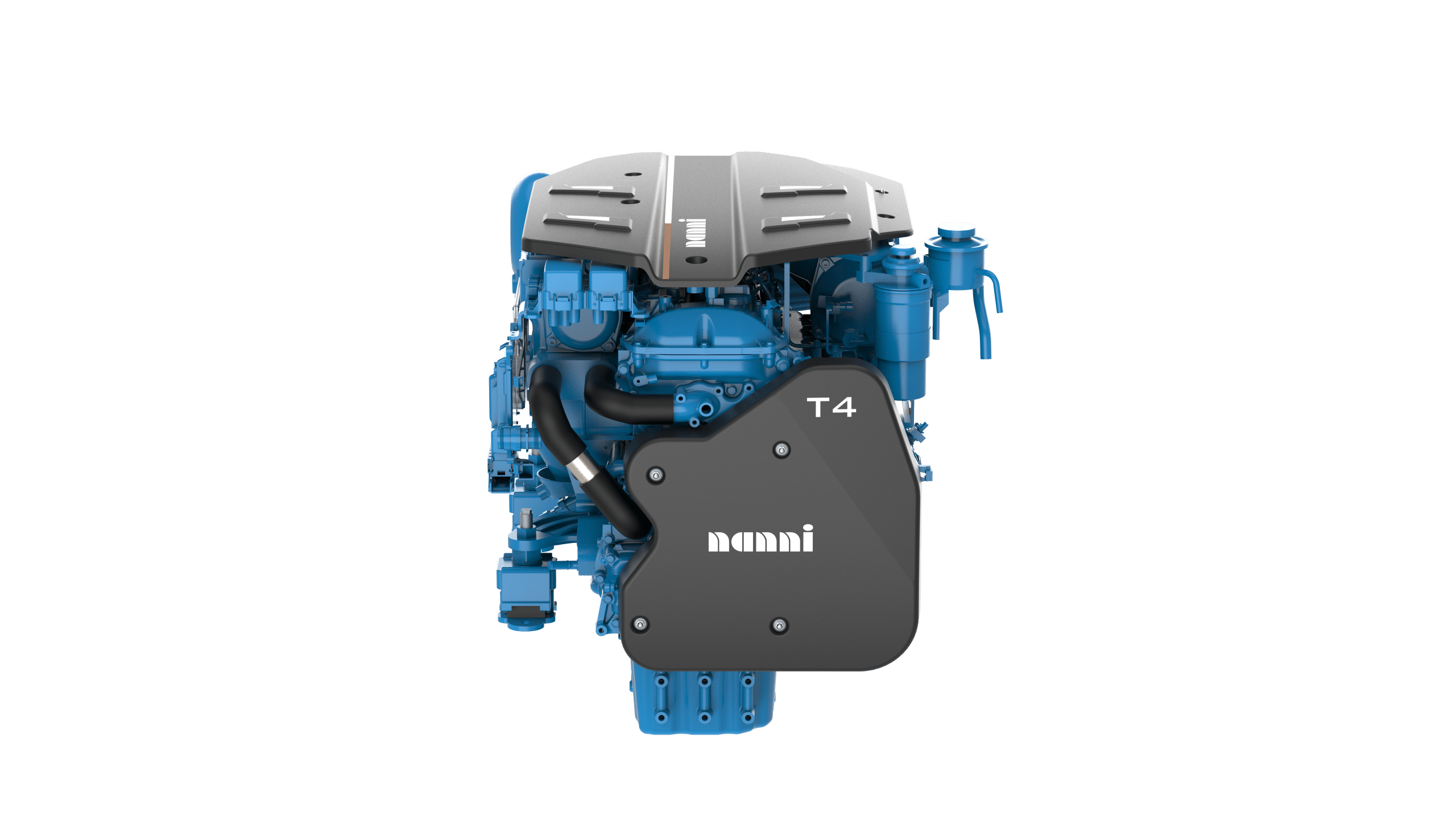

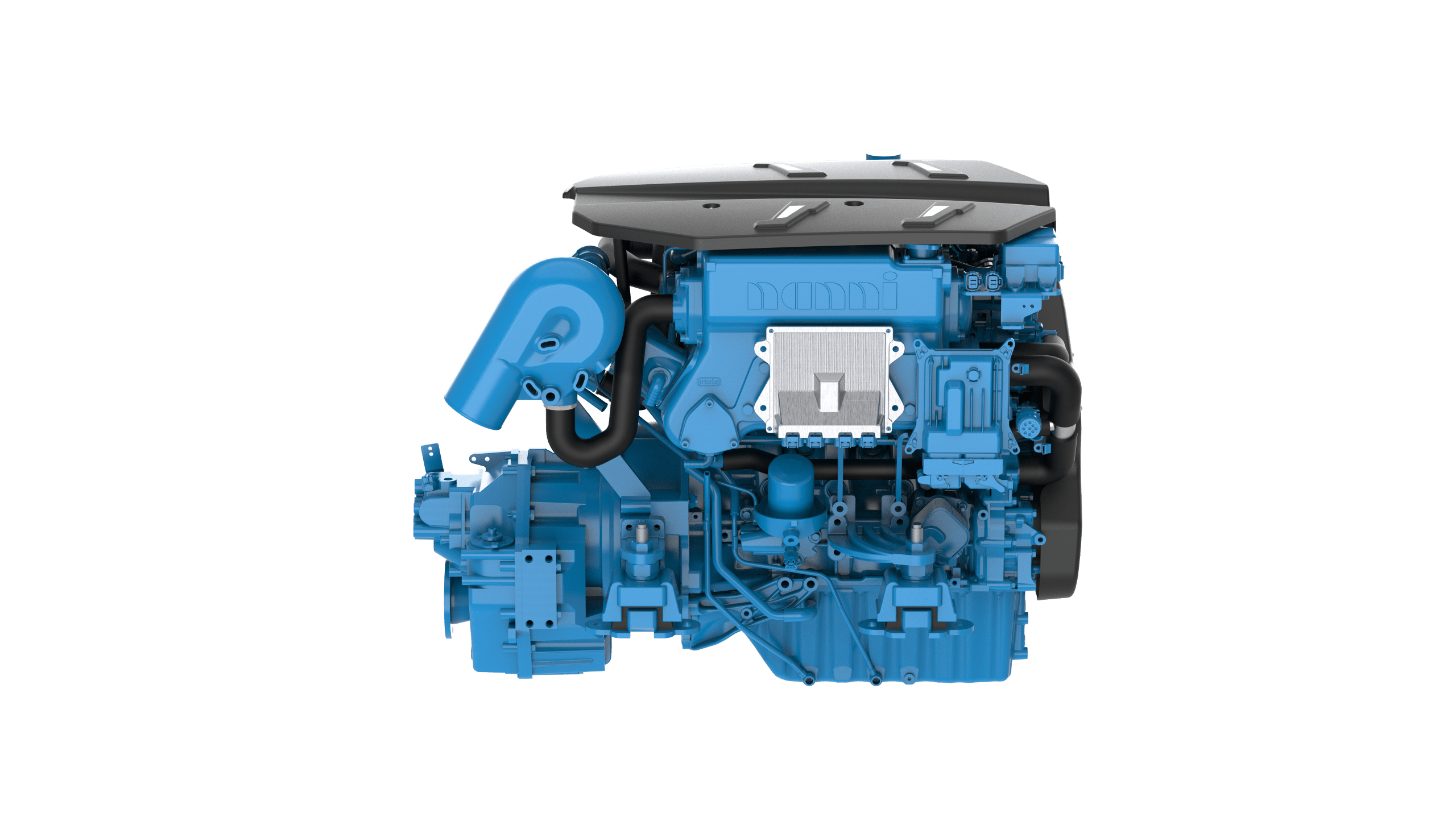

Engine range T4 Evo 3
T4.150
150 HP
-
111 kW
-
2.755 litres
- High Power Density
- Toyota Engine Base
- Easy maintenance
- Compact Design
Specifications
Configuration
4 cylinders in line
4 strokes Diesel
4 strokes Diesel
Fuel system
Direct injection
High pressure Common Rail
Electronically controlled
High pressure Common Rail
Electronically controlled
Displacement
2,755 l [182 in³]
Bore & Stroke
92 x 103,6 mm [3.62 x 4.07 in]
Air intake
Turbocharged with intercooler
Cooling
Closed cooling with heat exchanger
Transmission
Shaft Line, Sail Drive, Stern Drive
Emission
RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2, IMO II
Dimensions
Max length
1017 mm [40 in]
Length clutch
805.9 mm [31.7 in]
Width
805 mm [31.7 in]
Height
811 mm [31.92 in]
Weight
334 kg [736.3 lbs]
Features and benefits
- Toyota engine base
- Robust design
- Compact package
- High power density
- Easy routine servicing
- Installation flexiblity
- 4 valves per cylinder
- 2 balancing shafts
