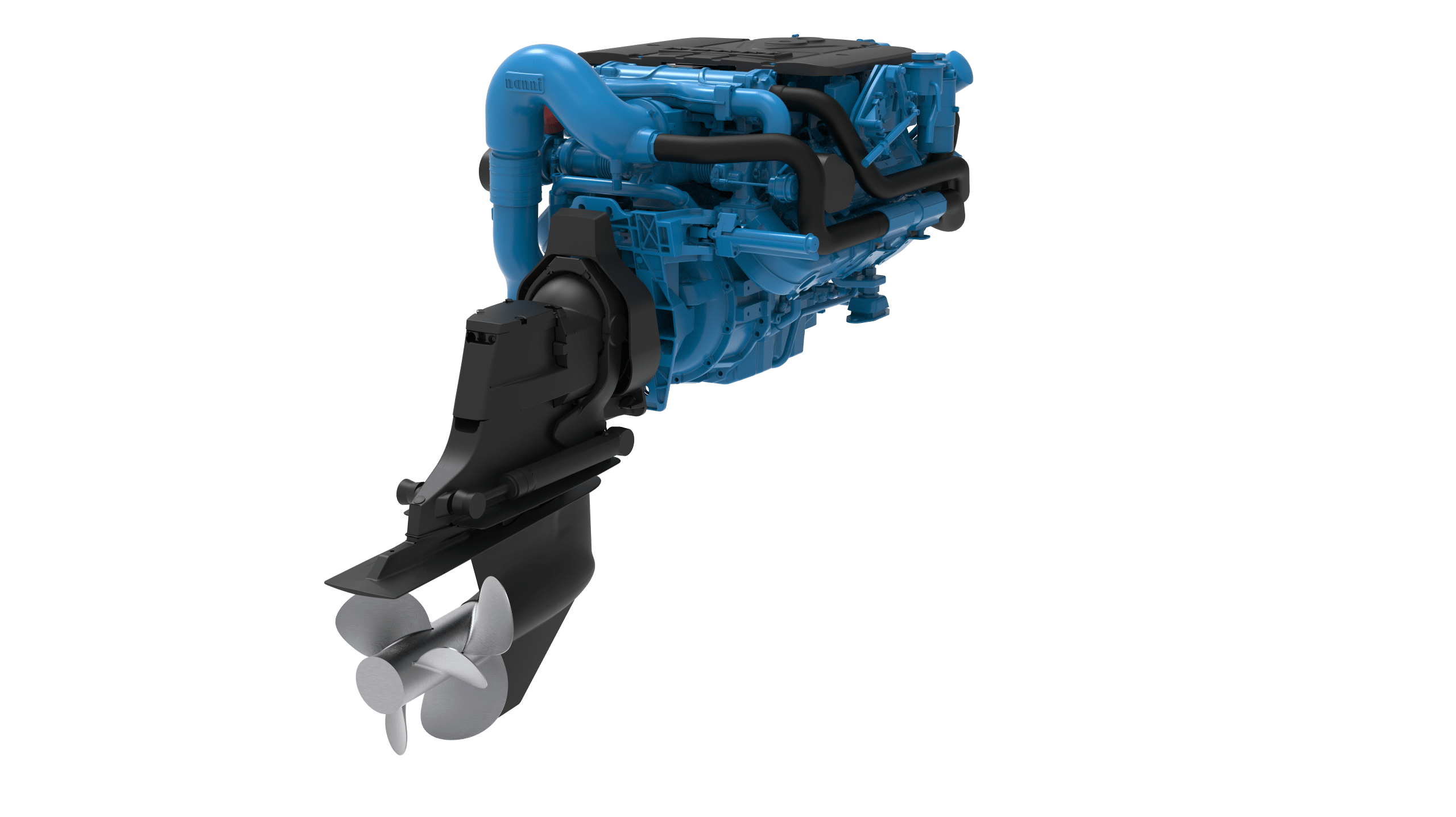

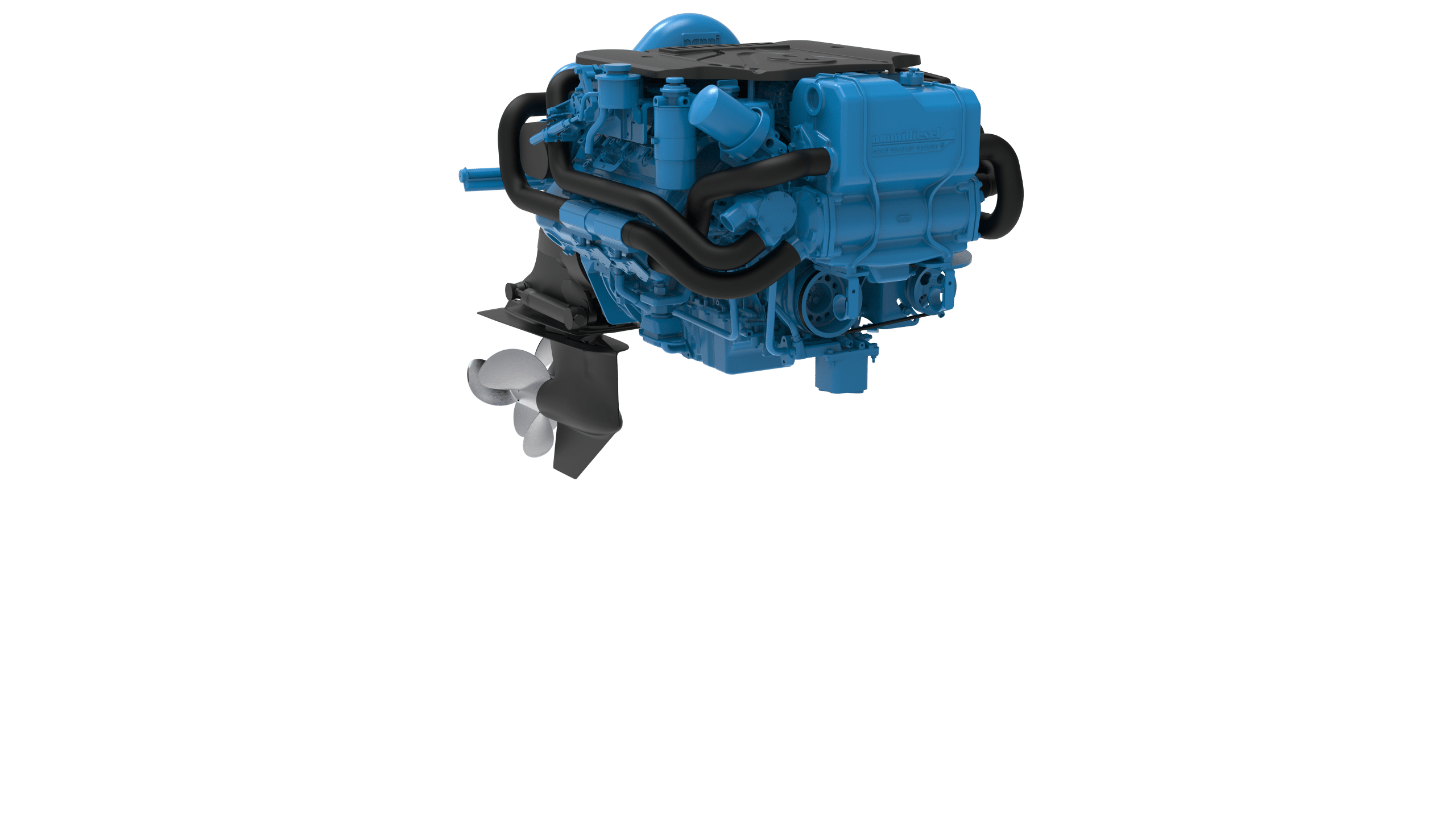

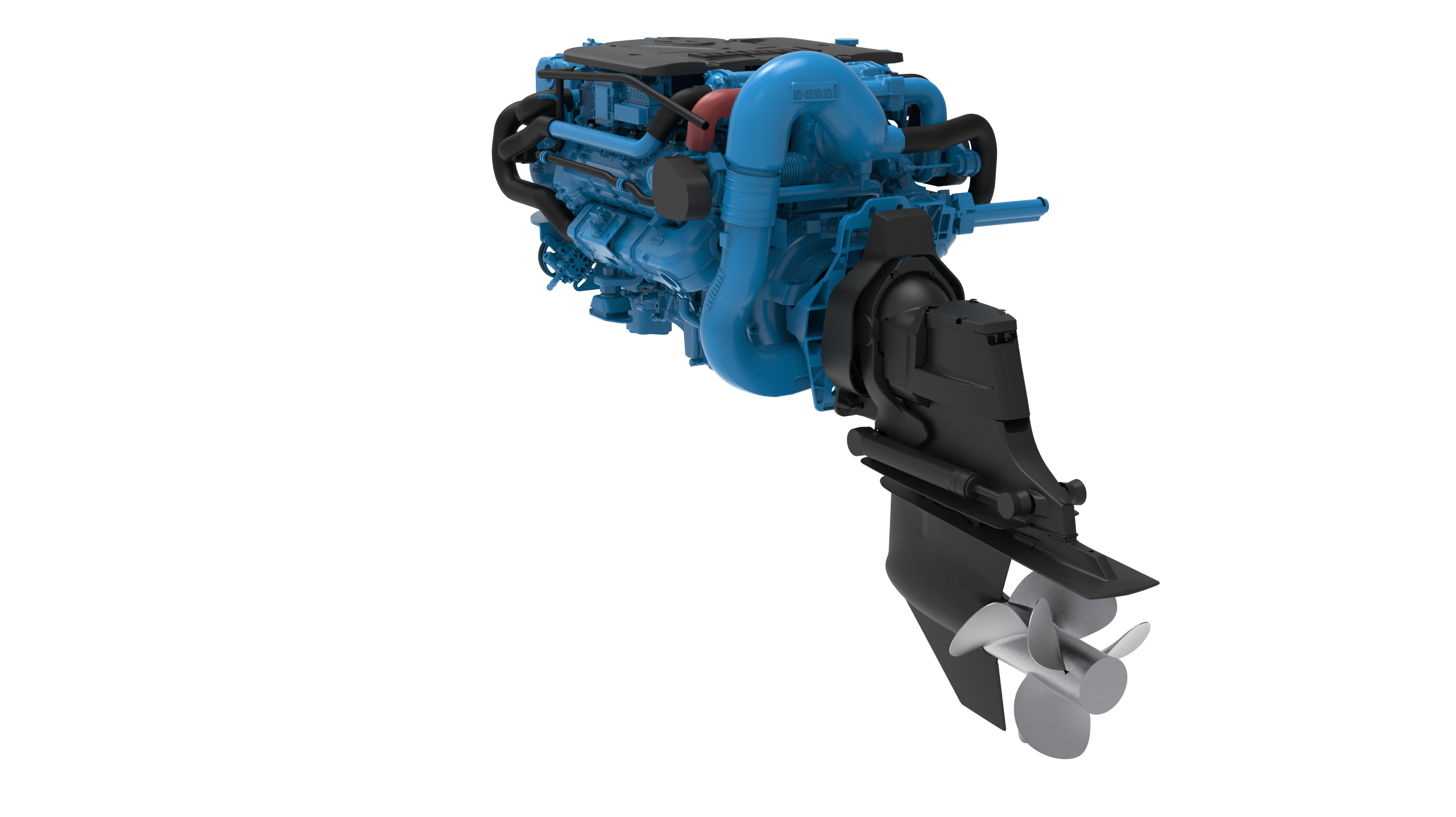

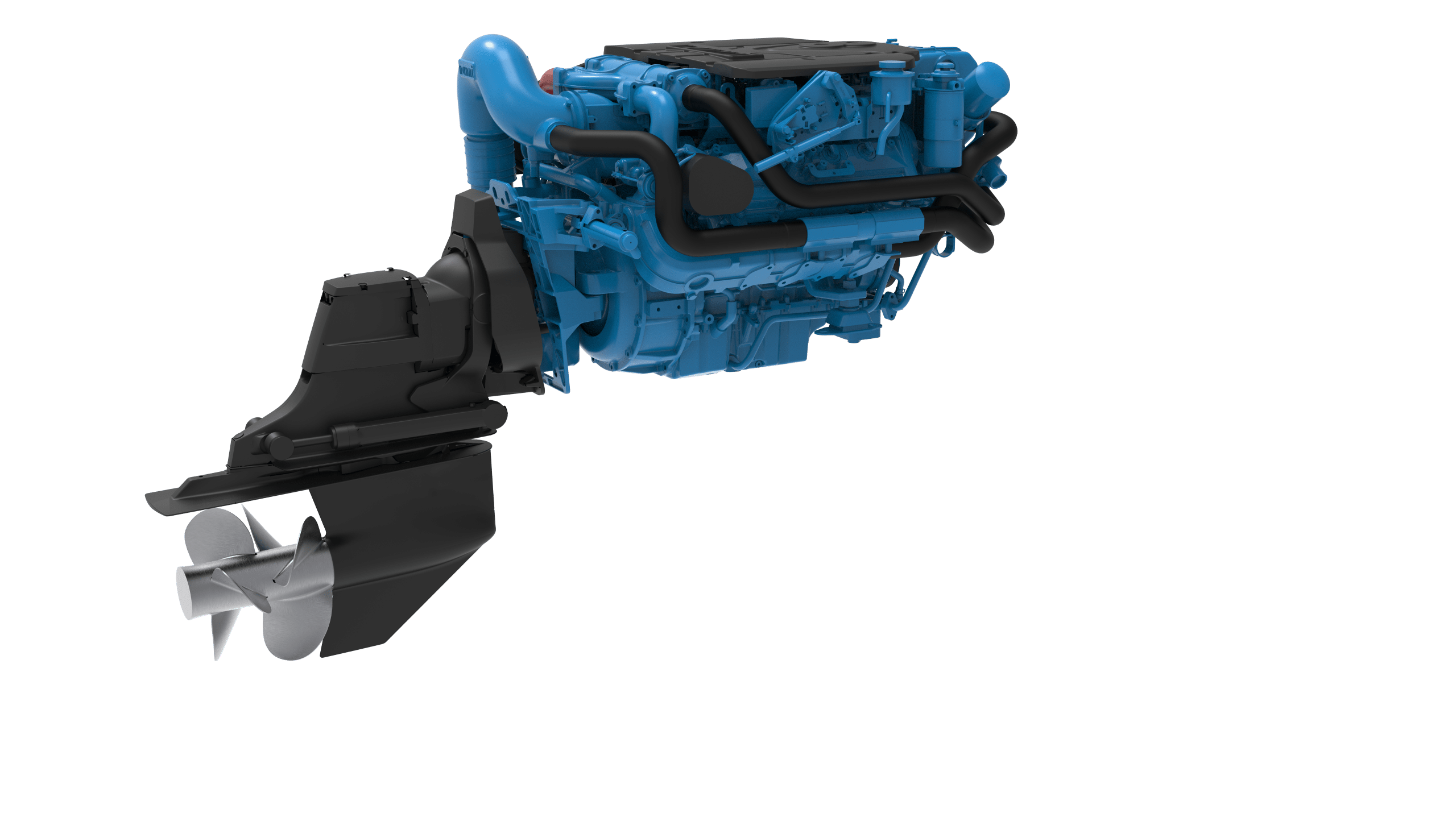

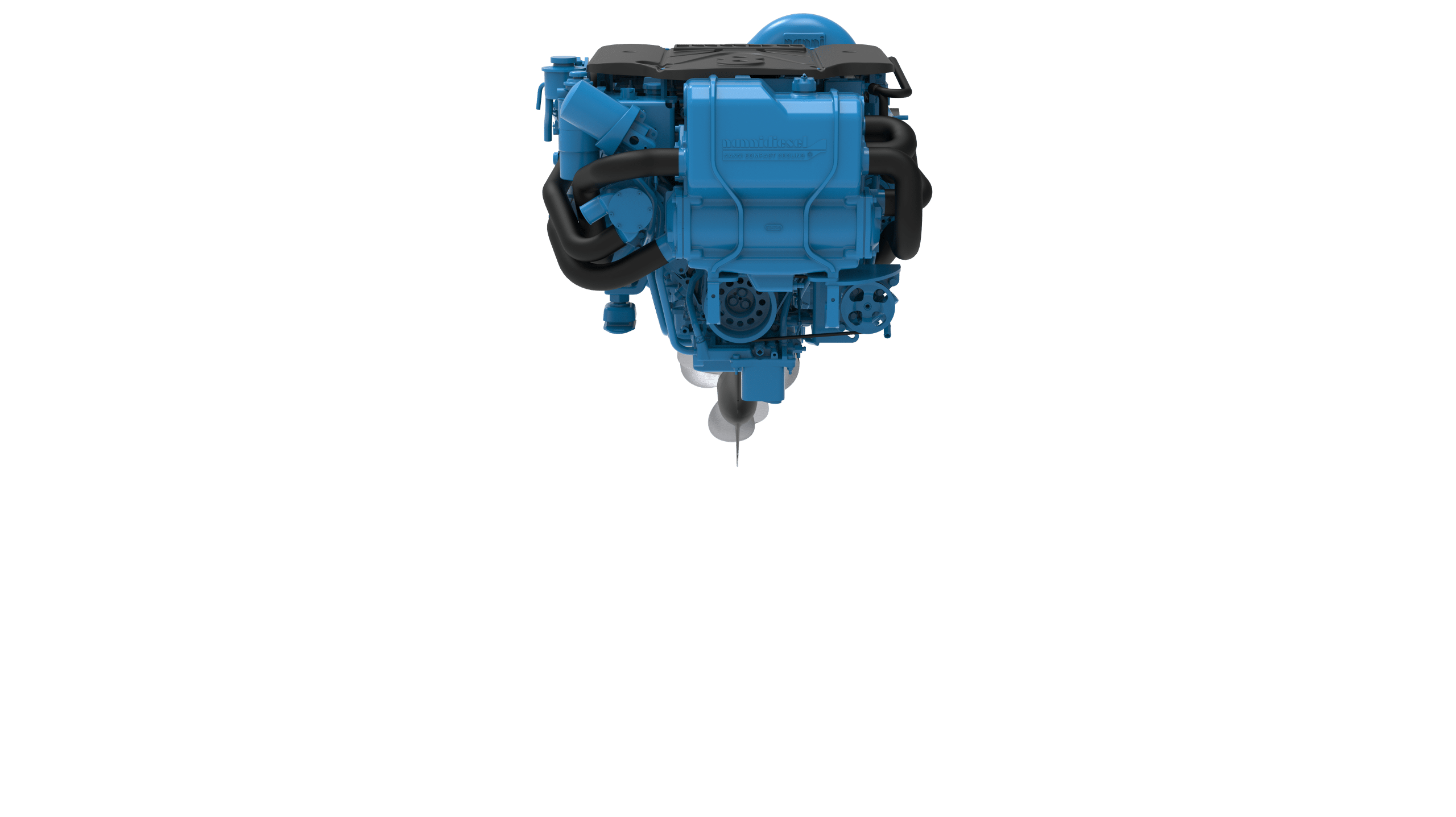

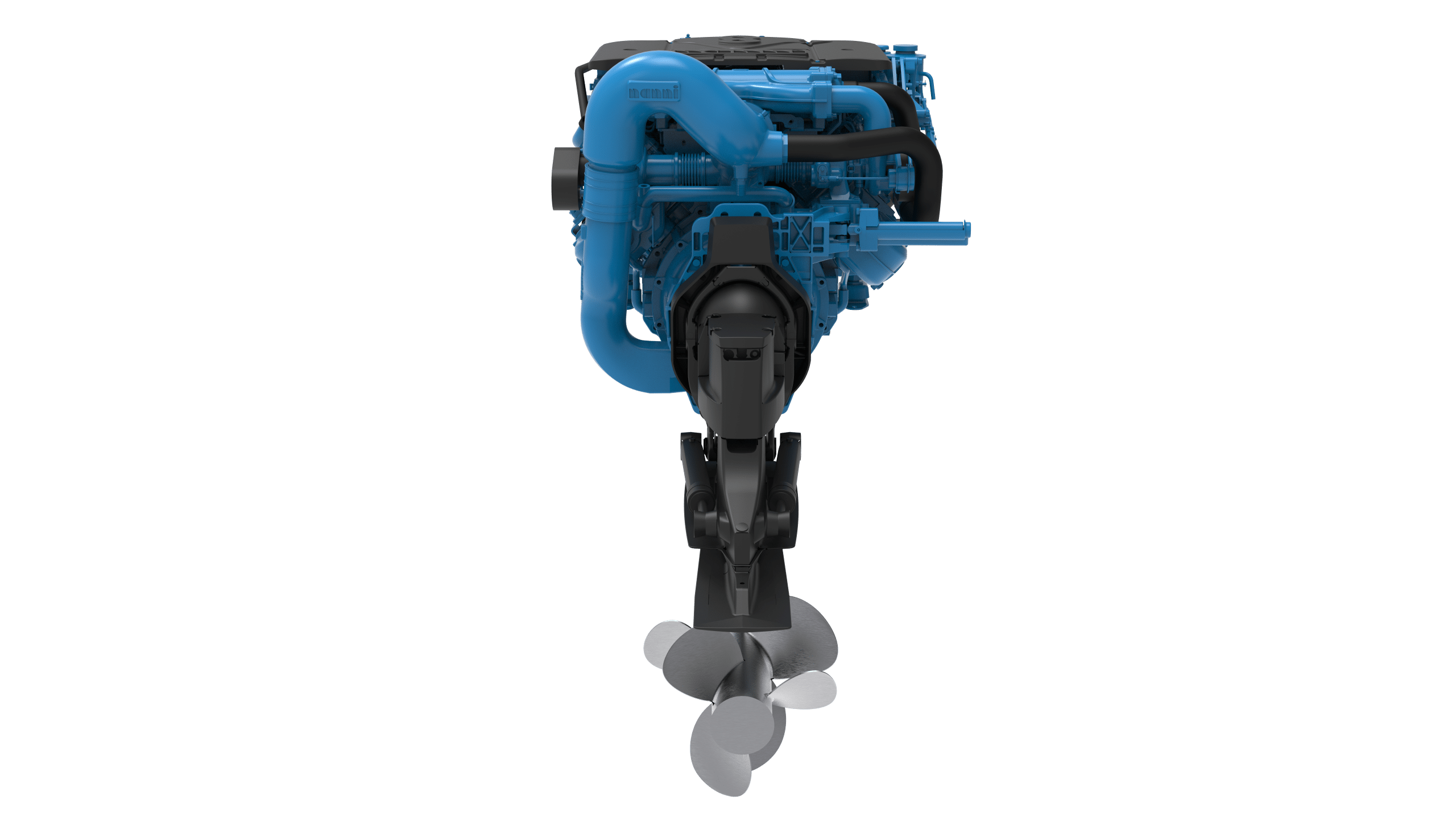

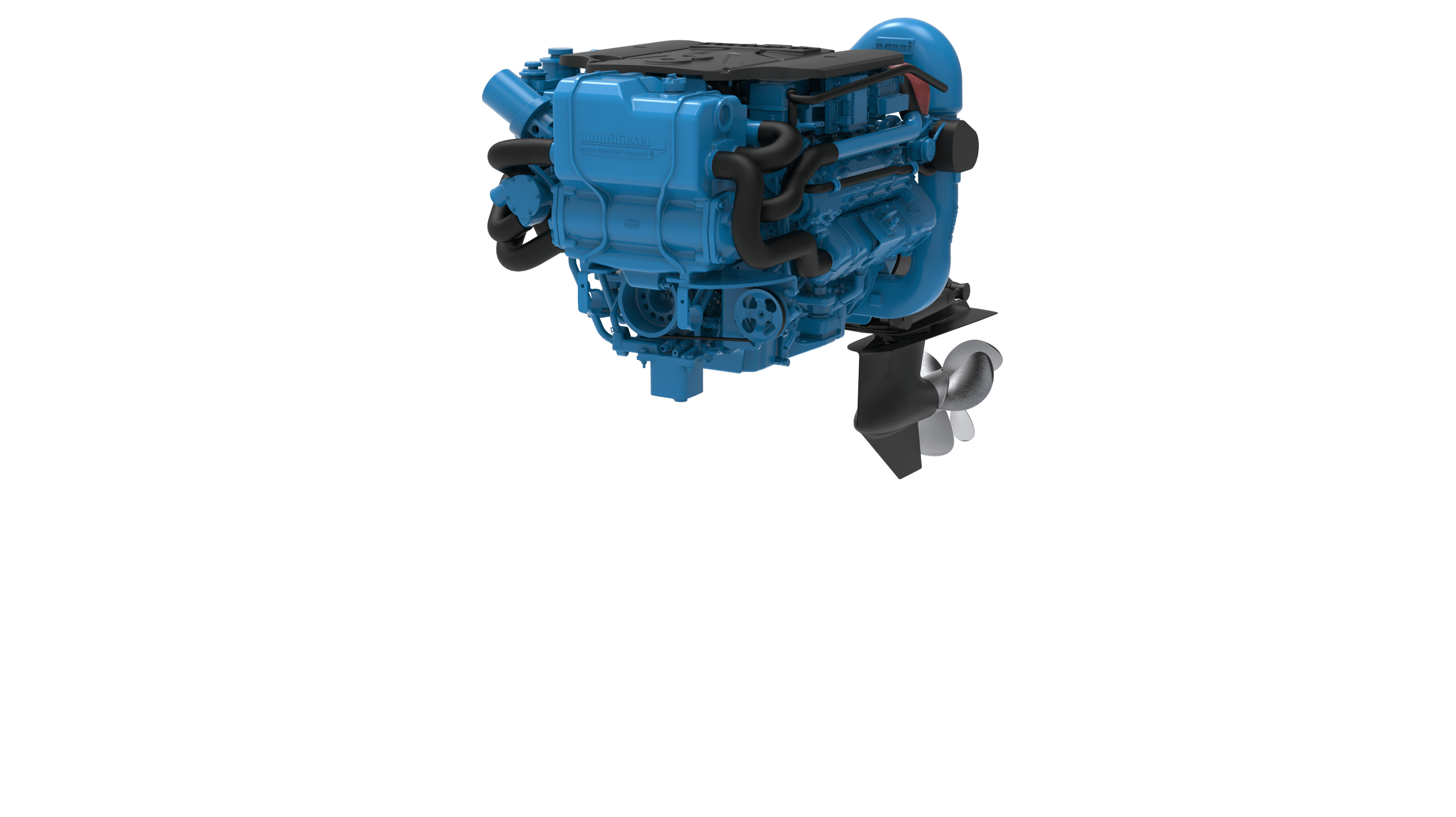

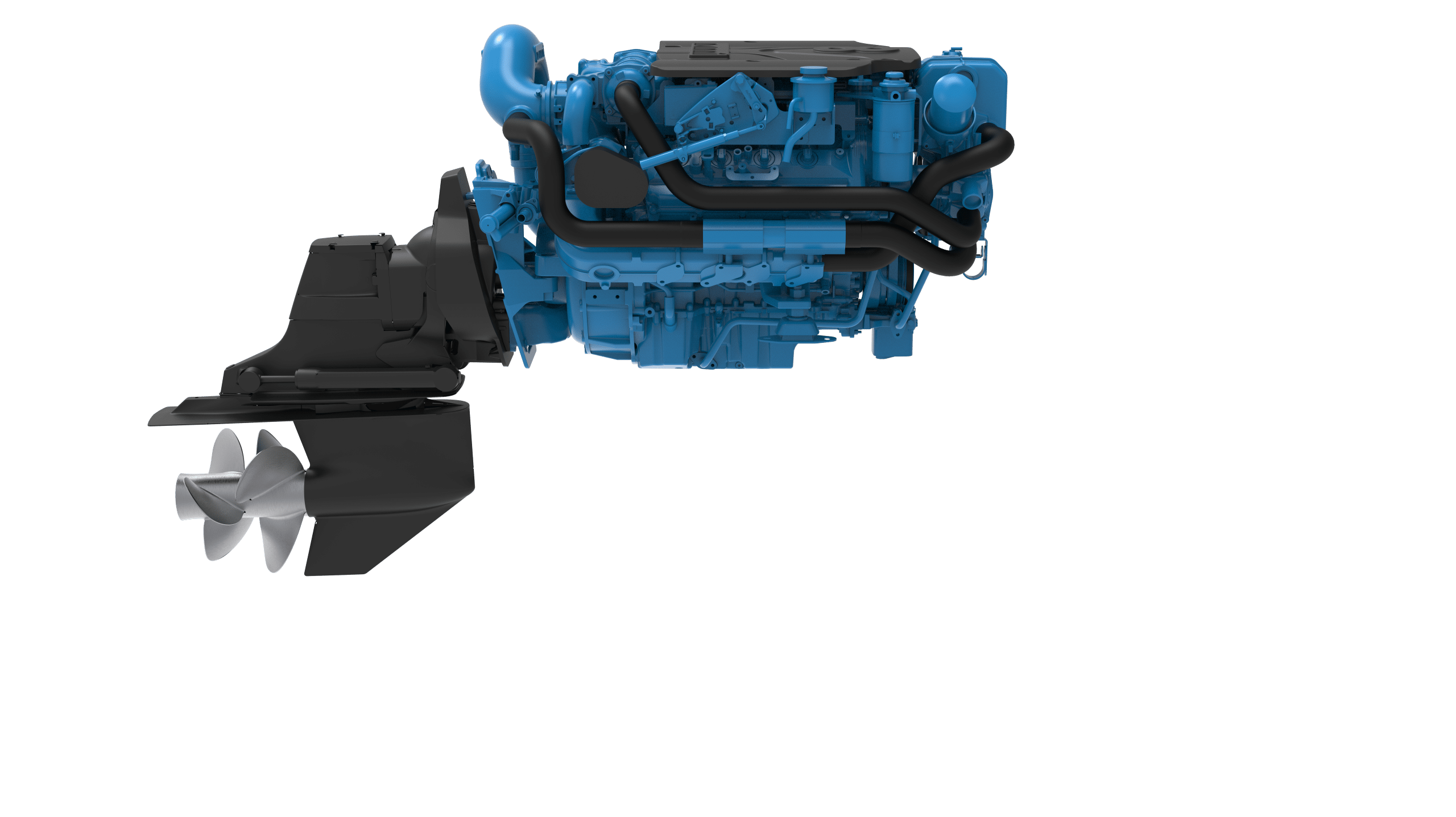

Gamme moteur Z8

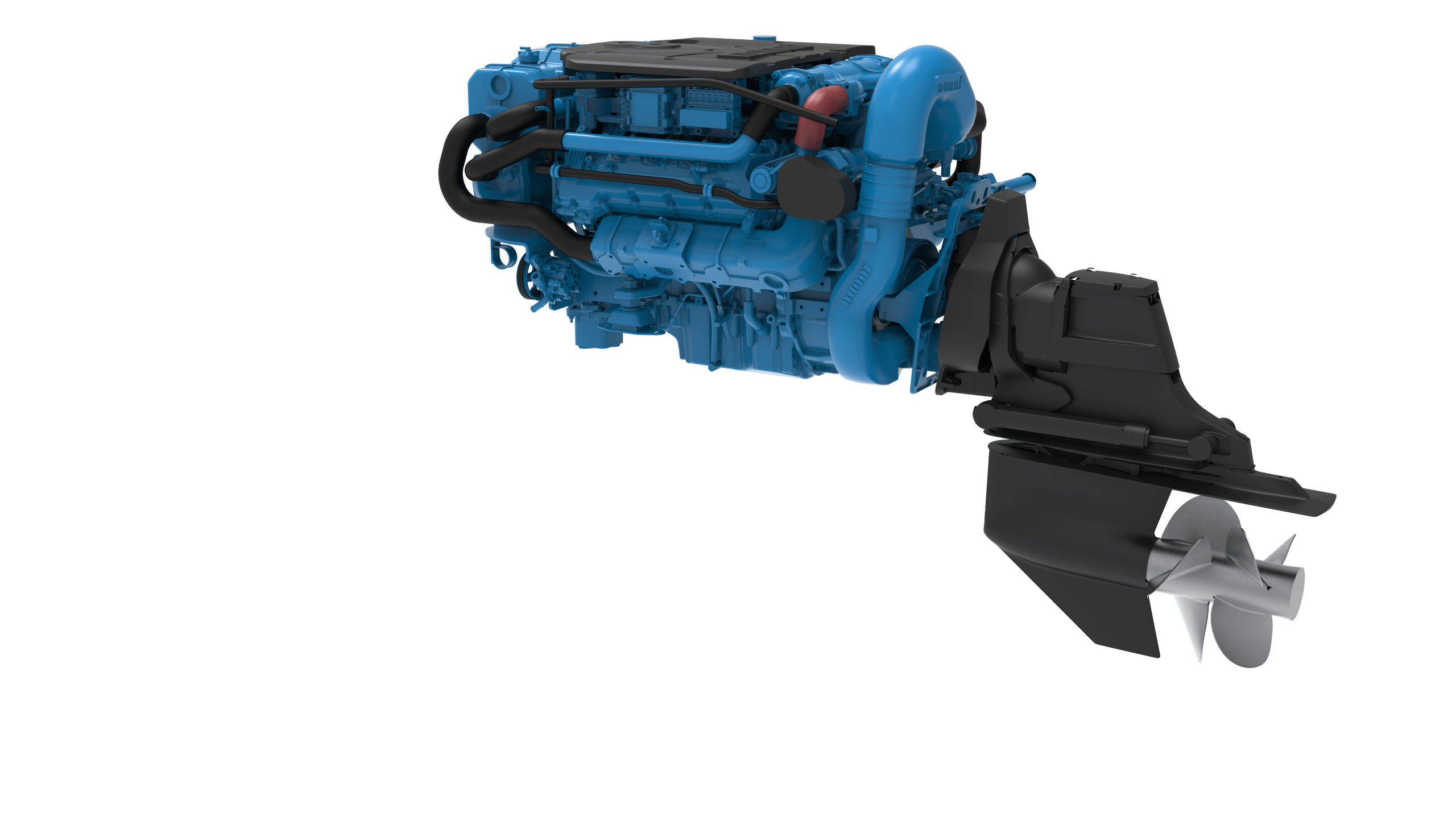

Z8V.370

370 HP
370 HP - 272 kW - 4.5 litres
  • High Power Density
  • Toyota Engine Base
  • Easy maintenance
  • Compact Design

Specifications

Configuration 8 cylinders V design 90°
4 valves per cylinder
4 strokes Diesel
Fuel system Direct injection
High pressure Common Rail
Electronically controlled
Displacement 4,5 l [272 in³]
Bore & Stroke 86 x 96 mm [3,39 x 3,78 in]
Air intake Twin turbocharger
Cooling Closed cooling with heat exchanger
Transmission Shaft Line, Water Jet
Emission RCD2 2013/53/EU, EPA Marine Tier 3

Dimensions

Max length 1389 mm [54.6 in]
Length clutch 1032 mm [40.6 in]
Width 841 mm [33.1 in]
Height 756 mm [29 in]
Weight 435 kg [959 lbs]

Features and benefits

  • Toyota engine base
  • Robust design
  • Compact package
  • High power density
  • Easy routine servicing
  • Installation flexiblity
  • 4 valves per cylinder
  • Internal balancers
